Wanfang technology has been widely used in China's textile printing and dyeing industries, making significant contributions to automation control

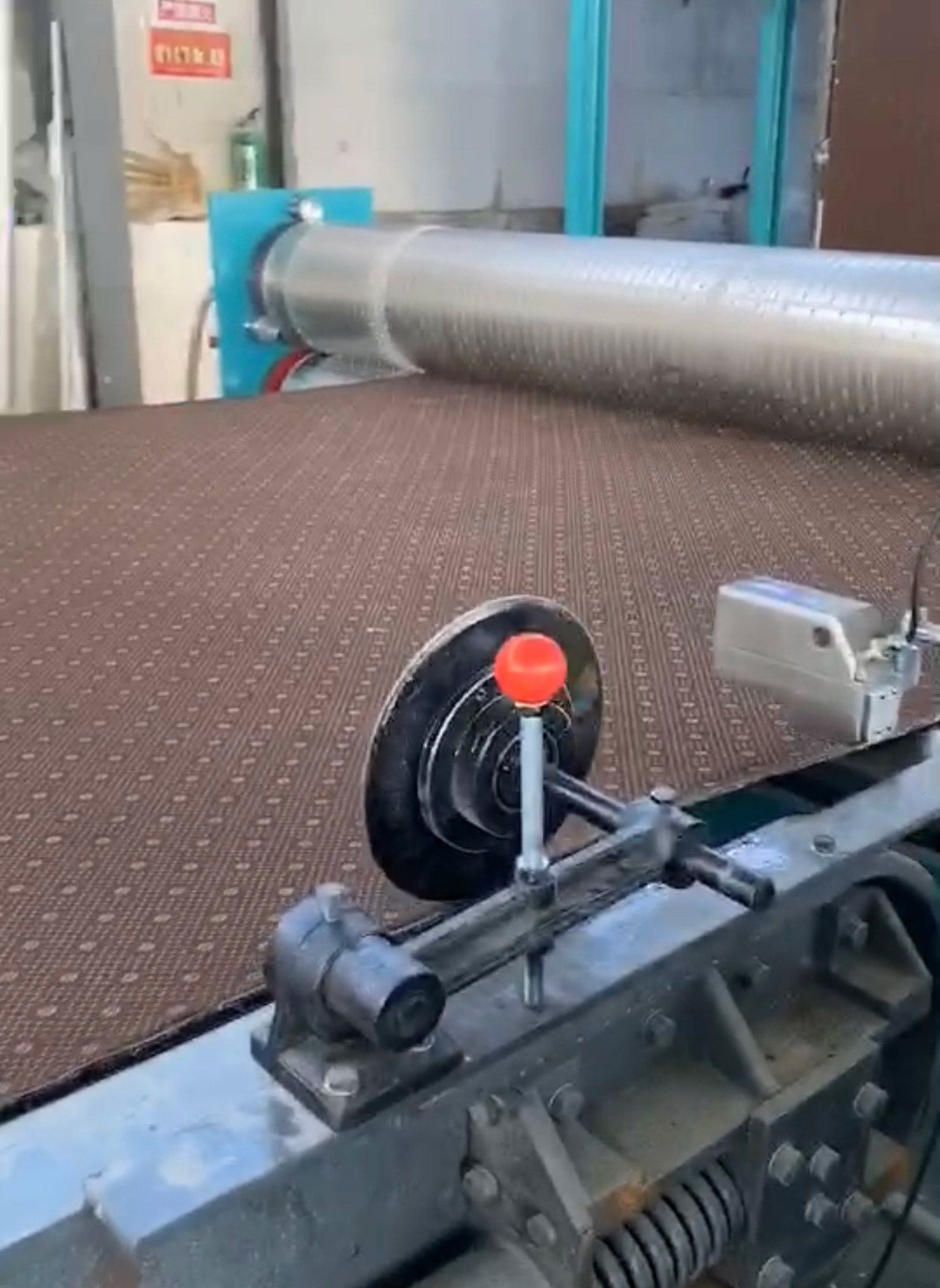

The automatic plastic dropping machine is an intelligent automatic control equipment that replaces manual plastic dropping. It can precisely dispense glue onto various complex patterns on molds, control the glue output arbitrarily, select different colors of glue arbitrarily, and adjust the speed of plastic dropping. If there is no stringing, there is no need to wipe the mold. The bottom coating of the product can also be automatically fed and filled by the equipment. The processes that originally required manual completion step by step are now handed over to the equipment for one-time automatic processing. What enterprises need to manage is no longer workers, but machines that never need rest. A series of issues such as differences in worker proficiency, high employee turnover, short delivery times, high quality requirements, difficult worker management, large factory space, high investment costs, and high operating costs can all be well resolved.
| Name | Plastic Dropping Machine, Dot Coating Machine |
| Application |
Used for printing plastic dots or patterns on fabrics such as cotton, chemical fiber, blended, and non-woven fabrics. Used for producing knitted fabrics, dot-coated glove blanks, decorative fabrics, hot stamping gold and silver. Dot coating operations for industries such as carpets, home textiles, gloves, and automotive interior materials. |
| Process | Fabric Feeding --- Dot Screen Printing --- Oven Drying --- Fabric Falling. |
| Electric Heating Oven | 15m. (Length can be customized according to requirements) |
| Power | Approx. 150KW |
| Mechanical Roller Width | 1800-3600mm customizable |
| Electric Heating Temperature | 100-200 degrees. |
| Process Speed | 5-50m/min. |
