Product Description

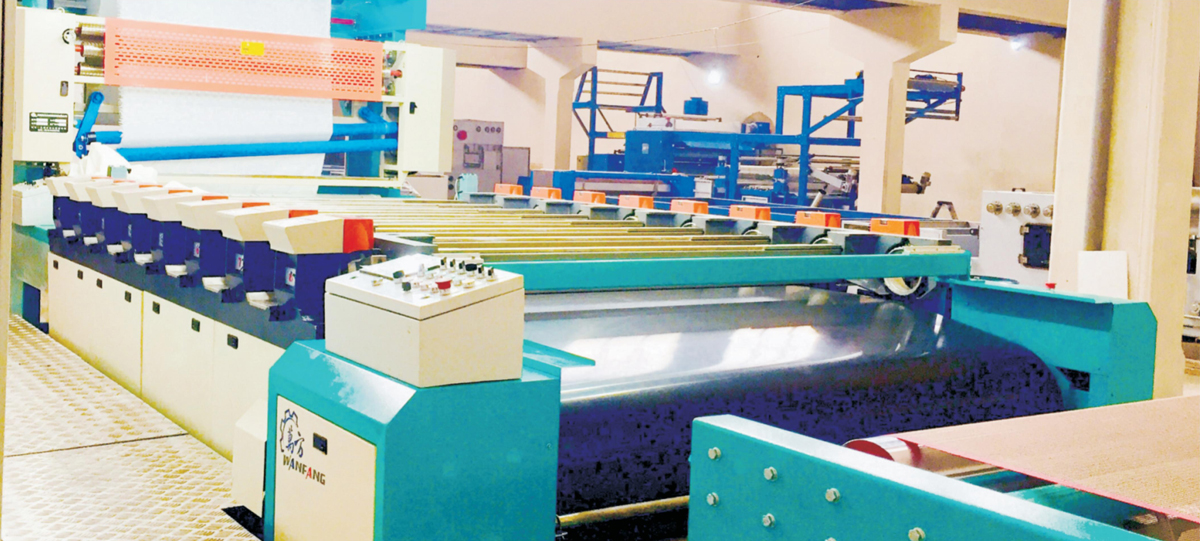

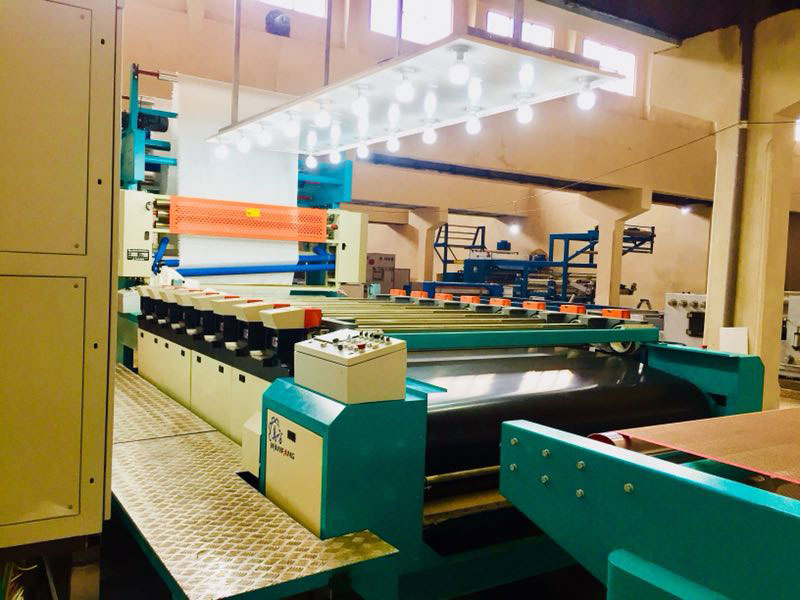

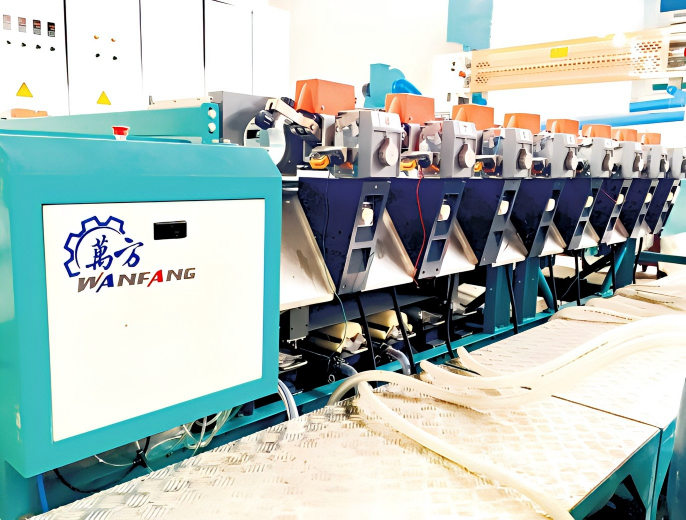

Rotary screen printing machine is one of the most popular printing machine in the market. On the basics of the high standard printing requirements of customers,the structure and system of the machine are constantly updated and upgraded.The squeeze scraper rotary screen printing machine has the following advantages:light nickel screen,convenient operation of loading and unloading rotary screen,auto registering system,auto dye pumping system,low labor intensity,high capacity,little limits of color numbers,etc.

Technical Features

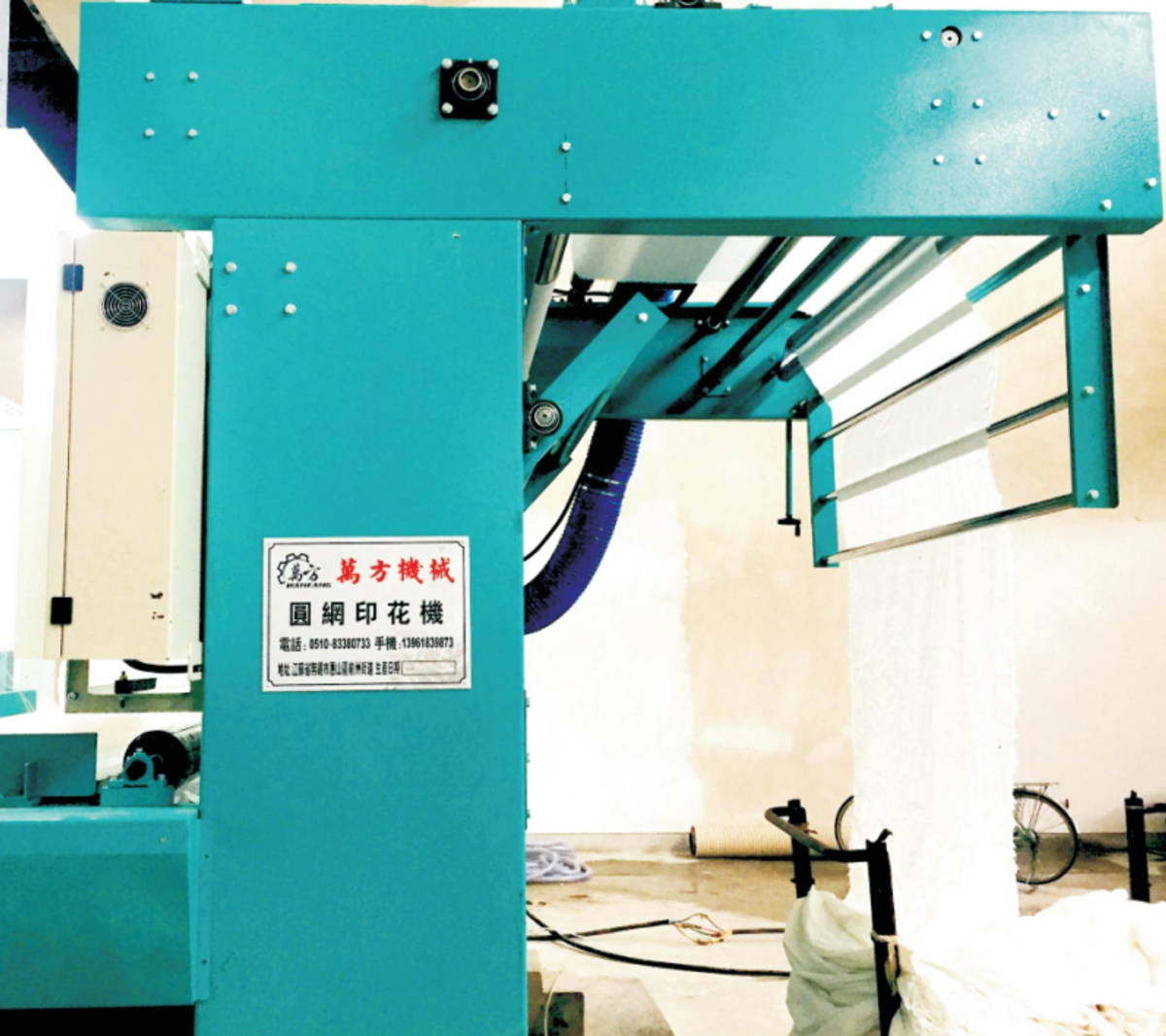

· The whole production line of rotary screen printing machine is consists of fabric feeding,printing,drying and fabric falling,total four parts.Driven by four AC motors with frequency conversions.

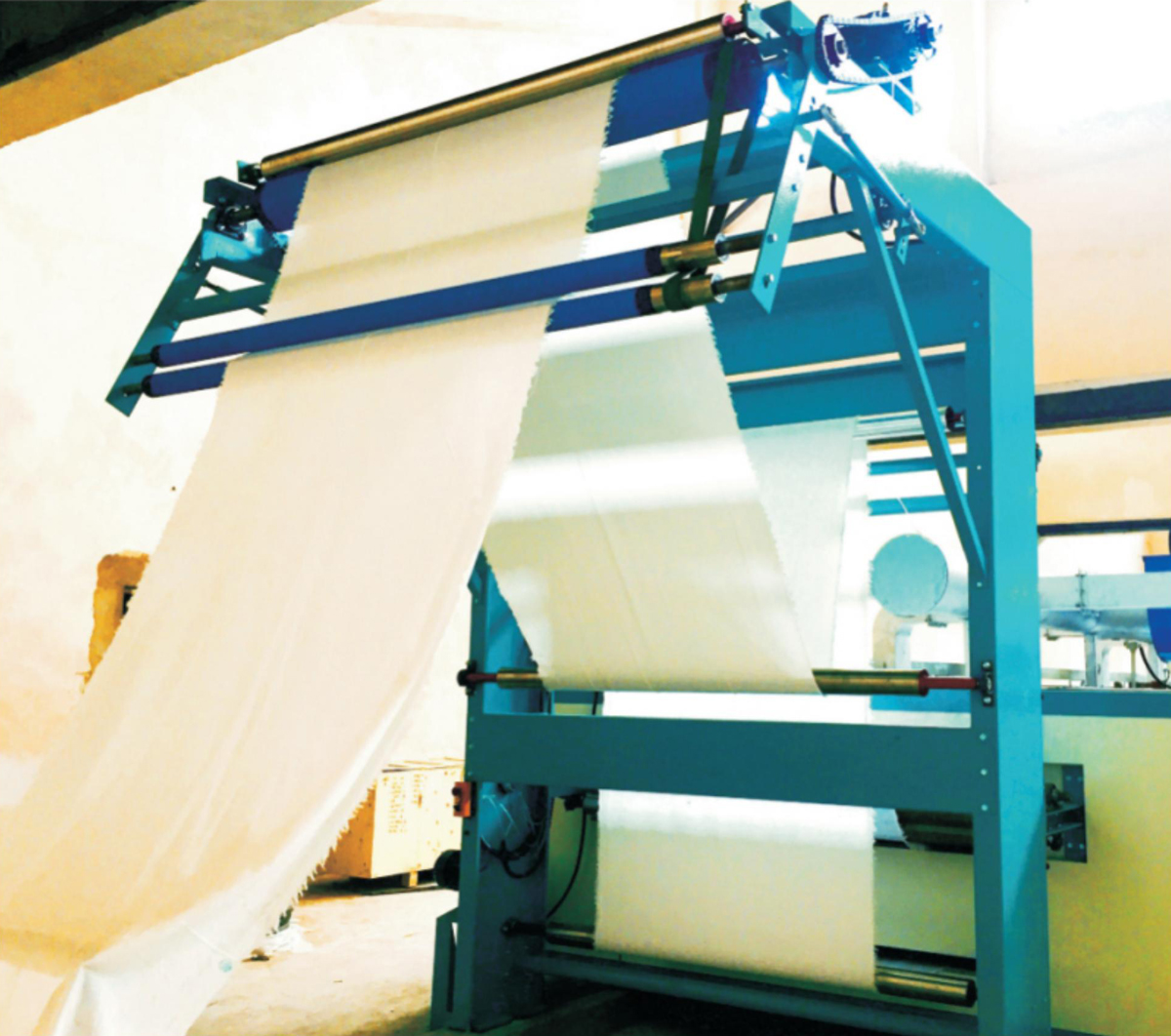

· Fabric entry with open-width feeding,height increased feeding frame and infrared fabric guiding device,transferred the fabrics to the printing part flatly and steadily.

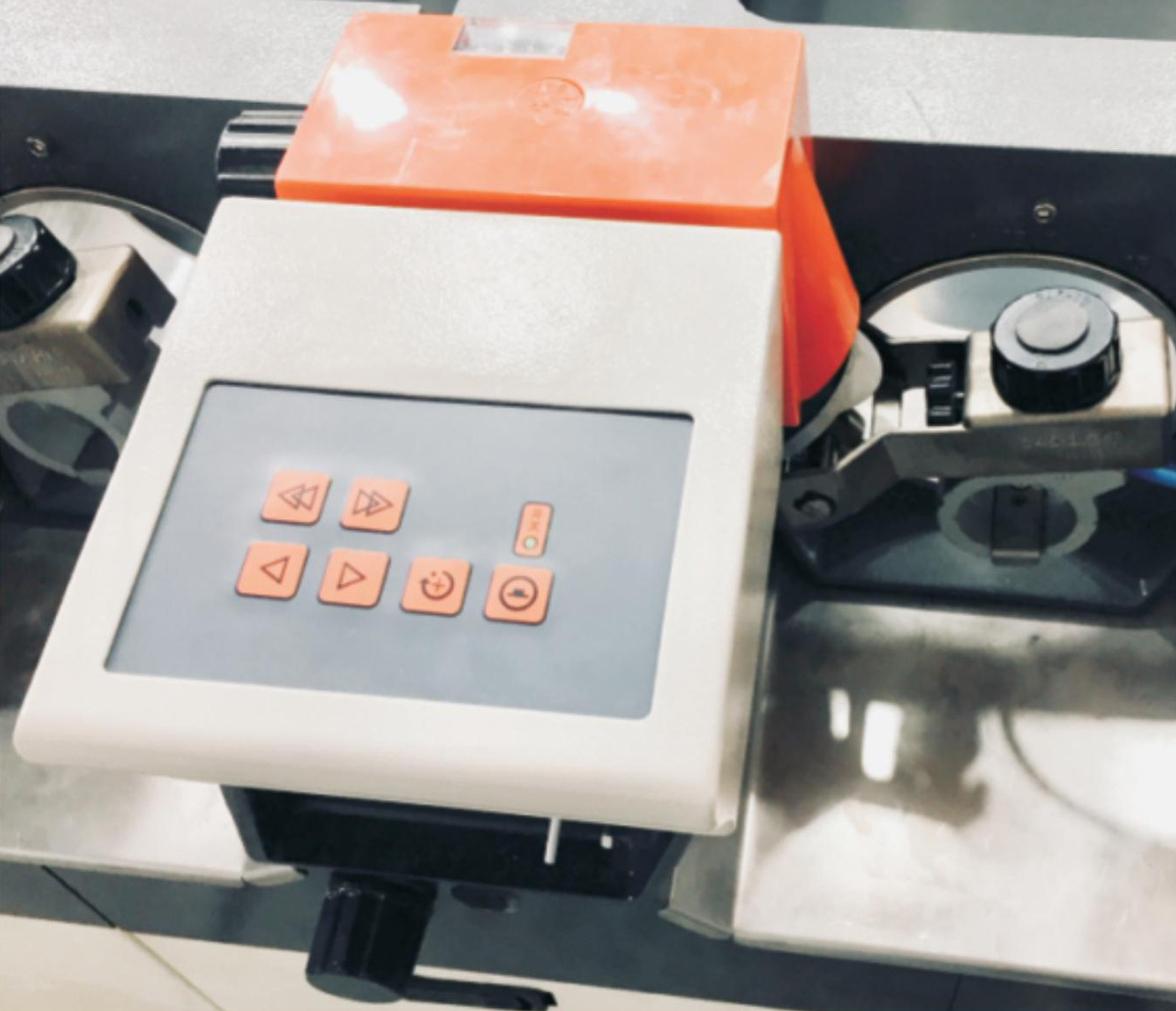

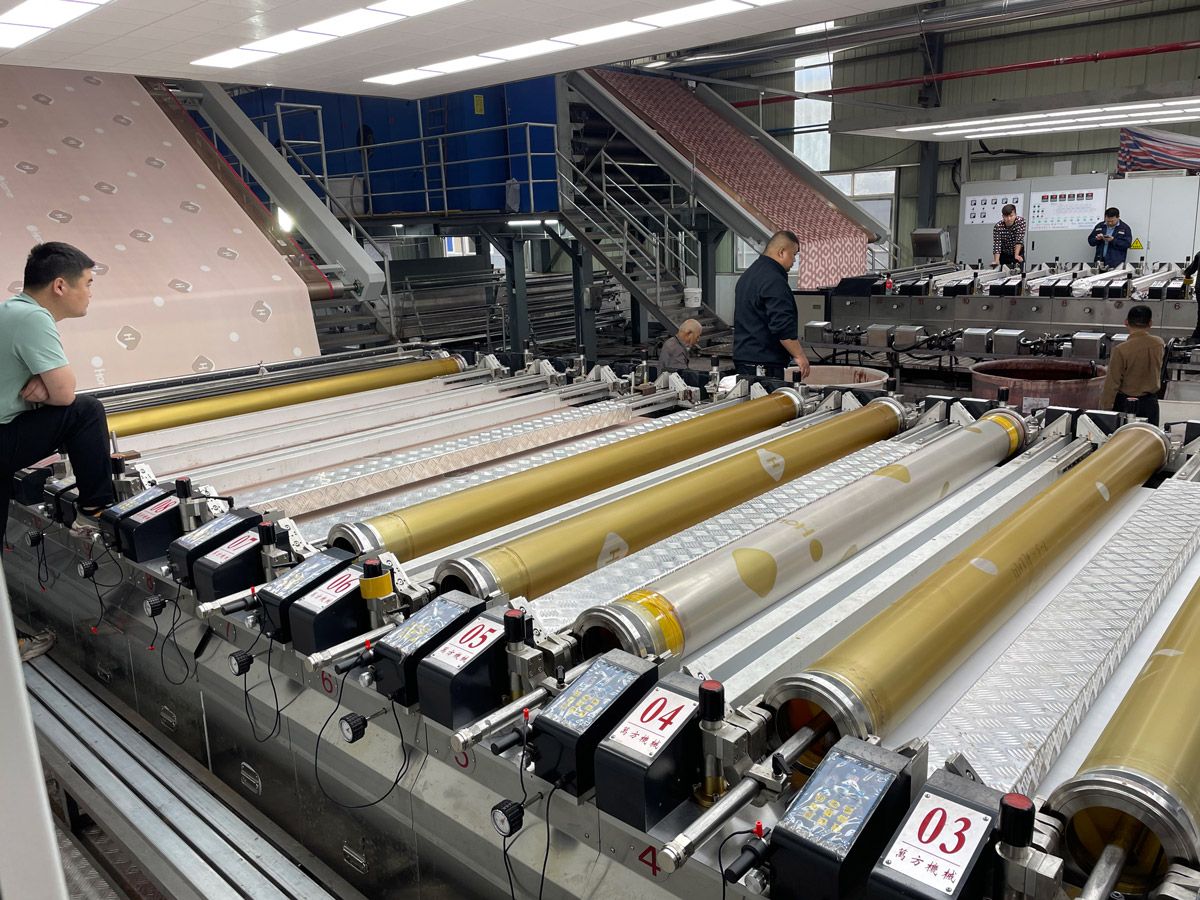

· Printing part includes,printing blanket,rotary screen driving device,rotary screen,printing scraper holder,register control device, blanket washing device and the slurry plump system.

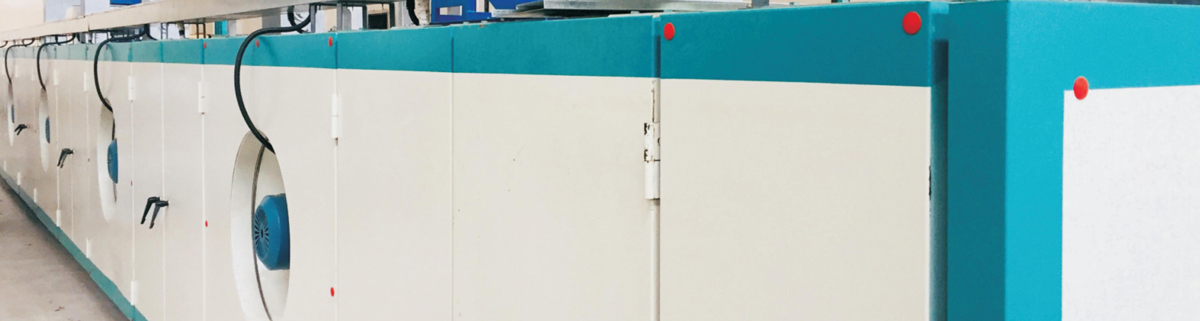

· Drying room uses modular construction with multi-layers structure,which is compact,less land occupation,fast circulation,high efficiency and low energy consumption.The mesh belt is driven buy individual motor and transfers the fabric in the dryer with low tension drying.

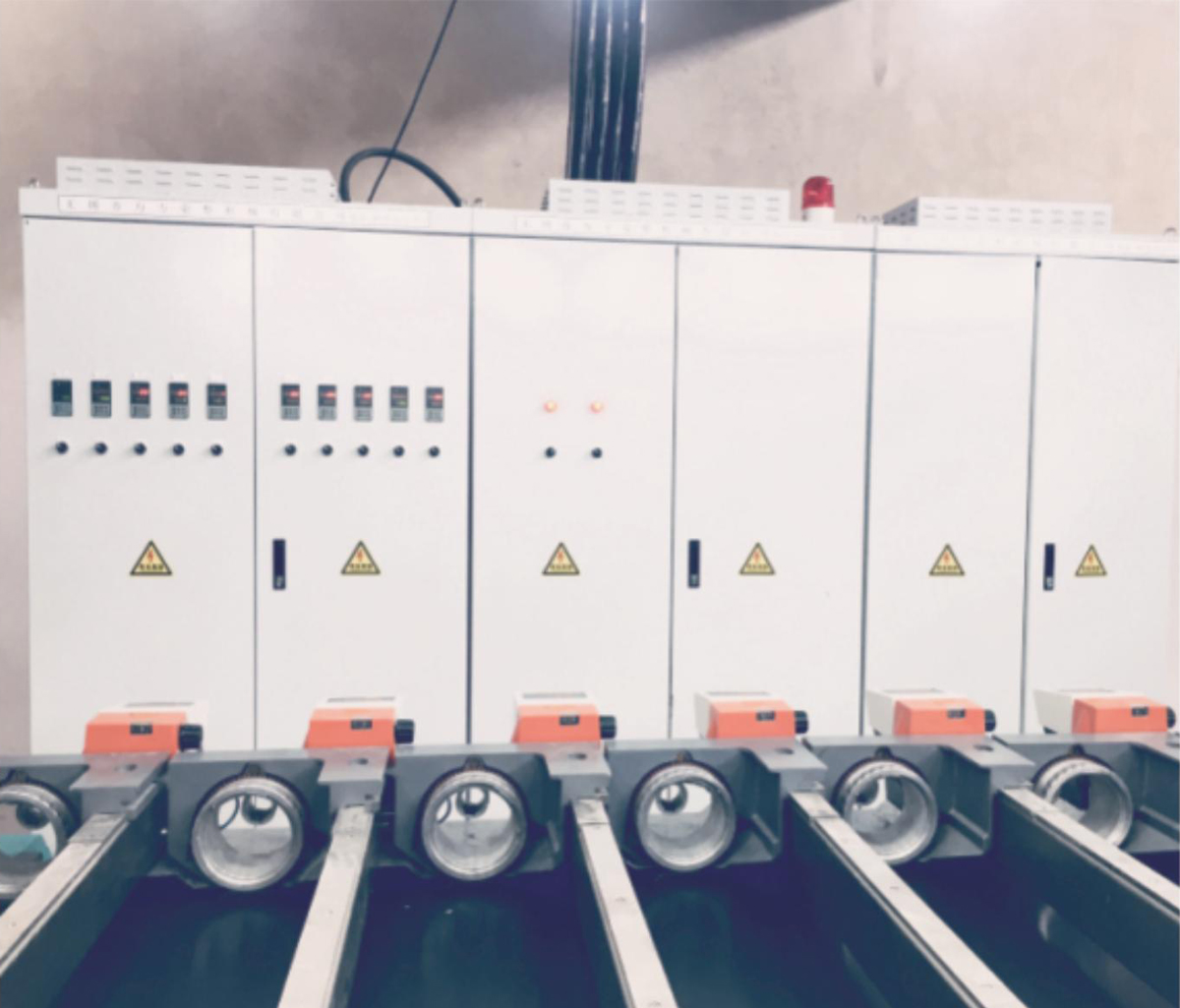

· Touch screen and PLC system control the whole machine,the pneumatic system is centralized controlled with imported electrical.
