Wanfang technology has been widely used in China's textile printing and dyeing industries, making significant contributions to automation control
This product is suitable for surface raising of knitted and woven fabrics, elastic spandex, elastic pantyhose, lycra fabric, suede, sea island velvet, pure cotton, and blended knitted, woven, and jacquard fabrics. Processed products are mostly used for: sofa fabrics, high-end leather shoe fabrics, elastic swimwear pants, high-end clothing fabrics, etc. After raising, the fabric surface feels soft and smooth, with a fine, short, and uniform appearance. Mainly used for high-end textiles, greatly increasing their added value.
Fully automatic variable frequency touch screen control, equipped with 12 computer-controlled cylinders, enabling 6
raising rollers to achieve complete synchronization.

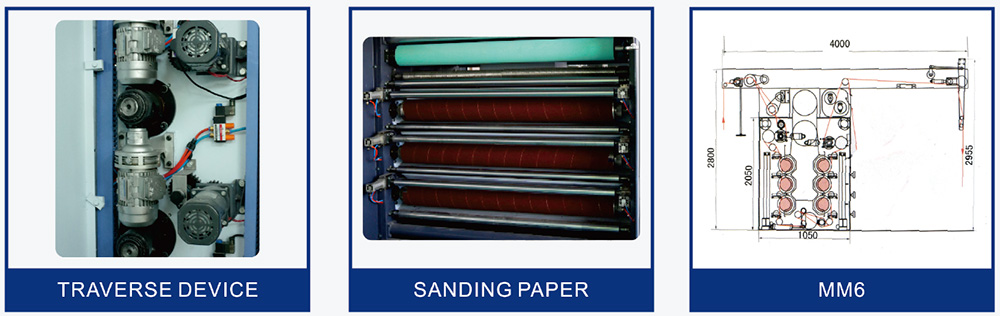

Traversing motors are installed on both sides of the front raising rollers, allowing the rollers to contact the fabric
surface more comprehensively, ensuring the processed fabric surface is completely smooth without the streaks typically
associated with raising.
Can store 500 process parameters, simple and efficient operation.

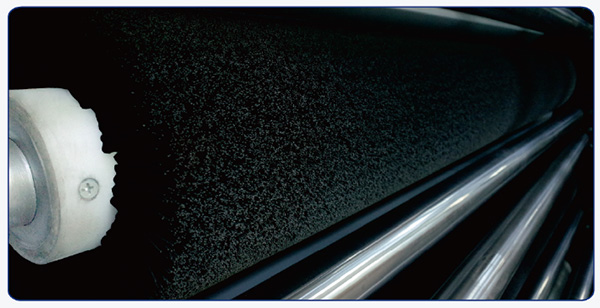

Sandpaper and carbon fiber raising rollers can be freely combined.
Full-process fabric tension control: Uses front, middle, and rear three sets of traction rollers to collaboratively
adjust fabric tension, ensuring consistent raising tension throughout.
| Installed Power | 58kw |
| Production Speed Adjustment | 6-70 m/min |
| Working Width | 1800-3400mm |
| Compressed Air Value | 6bar |
| Raising Roller Cylinder Quantity | 12 |
| Machine Weight | 6000-8000kg |
| Ironing Roller Diameter | φ210mm, φ270mm |
| Touch Screen Control | Yes |
| Optional Configuration | DuPont carbon fiber or ceramic fiber raising rollers |
| Drive Mode | Vertical |
| Overall Dimensions | 3300×2800×3800mm |
| Overall Dimensions | 4000×2800×3800mm |
