Wanfang technology has been widely used in China's textile printing and dyeing industries, making significant contributions to automation control

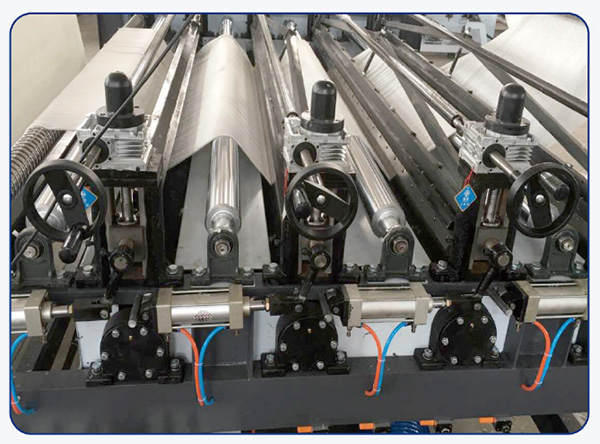

This product is an improved version of the traditional brushing machine. Each mechanical adjustment rod is equipped with a separate cylinder, which is more precise and labor-saving compared to traditional screw rods. The brushing rollers are configured with two by default, and extended machines with 4, 6, or more brushing rollers can be customized according to customer requirements. It is suitable for surface untwisting, carding, and other finishing of knitted fabrics, including polyester blankets, woolen fabrics, fur, carpets, rabbit plush, etc.
Each mechanical adjustment rod is equipped with a separate cylinder, which is more precise and labor-saving compared
to traditional screw rods.
Simple structure, easy to install and disassemble. Environmentally friendly, low energy consumption.
The brushing rollers are driven by motors at both ends, and the distance between the bottom of the fabric guide seat
and the brushing rollers can be adjusted through screw rods.
The fabric running structure includes a reducer, traction rollers, fabric guide rollers, plaiting frame, etc.
| Installed Power | 7.5kw |
| Production Speed Adjustment | 10 m/min |
| Number of Cylinders | 2, 4, 6, 8 |
| Number of Brushing Rollers (Optional) | 2, 4, 6, 8 |
| Brushing Roller Diameter | φ165mm |
| Working Width | 2000mm, 2200mm, 2500mm |
| Air Source Pressure | 6 bar |
| Overall Dimensions - 2200mm 2 Rollers | 2800×2630×2773mm |
| Overall Dimensions - 2200mm 4 Rollers | 3200×2630×2773mm |
| Overall Dimensions - 2200mm 6 Rollers | 3600×2630×2773mm |
