This product is suitable for carding and finishing of polar fleece, coral fleece, flannel, and similar fabrics. It mainly increases the fabric surface thickness through brushing, achieving the effect of raised pile and smooth fabric surface.

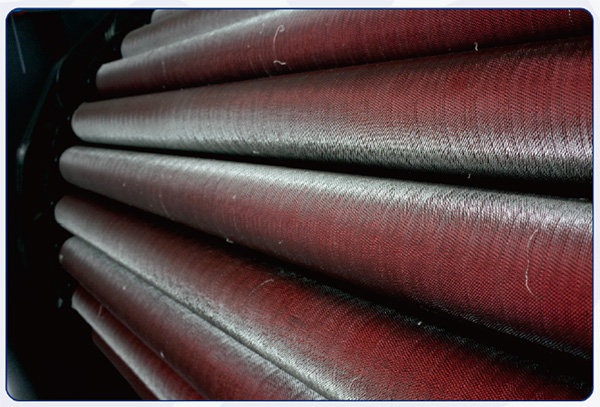

Adopts cylinder turntable structure with 24 brushing rollers, increasing the contact area and frequency with the
fabric, and can penetrate deep into the fabric texture.
Fully automatic variable frequency touch screen control.
Fabric running tension has preset function.
Automatic feedback function.
Equipped with automatic fabric guiding device.
| Installed Power | 37.8kw |
| Production Speed (Variable Frequency Adjustment) | 25-40 m/min |
| Number of Brushing Rollers | 24 |
| Brushing Roller Diameter | φ70mm |
| Cylinder Rotation Speed | 65-130 rpm |
| Machine Weight | 5500kg |
| Touch Screen Control | Yes |
| Working Width | 2000mm, 2500mm |
| Overall Dimensions - 2000mm | 4500×4250×3236mm |
| Overall Dimensions - 2500mm | 4700×4300×3236mm |
