Wanfang technology has been widely used in China's textile printing and dyeing industries, making significant contributions to automation control

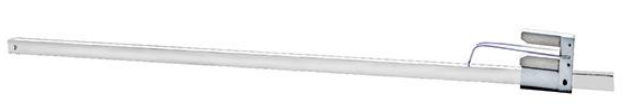

The SH-DB25A infrared edge guiding device also utilizes the same technology as the DZ25A model. The applicable machines and functions it can achieve are basically the same as the SH-DZ25. However, due to the different position where the fabric needs to be aligned during operation, the DB25A detector is a single-sided detector. The detector position can be manually adjusted to achieve full-width detection, with a resolution of 4m and fabric edge deviation ≤±2.5mm.

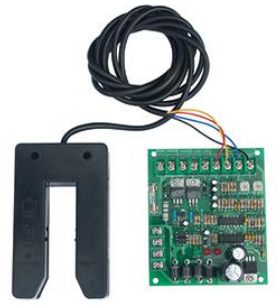

Infrared Edge
Guiding Device
High-precision photoelectric edge guiding device, controllable distance 2-5mm
| Resolution | 10 |
| Applicable Scope | Dyeing, printing and textile industries, etc. |
| Power Supply | 220V±10% |
| Output |
Left and right two groups of normally open/normally closed contacts, analog: -10V-0V-10V linear output |
| Response Time | Less than 20ms |
| Ambient Light Resistance | Sunlight below 10000Lux, artificial light below 5000Lux |
| Protection Rating | IP65, acid-resistant, alkali-resistant |
| Material | Inner aluminum alloy, outer high-temperature resistant plastic |
