This machine adopts a gear structure, equipped with one frequency converter. It is installed with 24 raising rollers. It is suitable for raising of knitted fabrics and other fabrics requiring large raising force. It is also suitable for cotton fabrics, leather base fabrics, tubular fabrics, such as milk silk, elastic spandex fabric, lycra fabric, and polar fleece.
This machine adopts a traditional operation interface, with simple operation and stable performance.

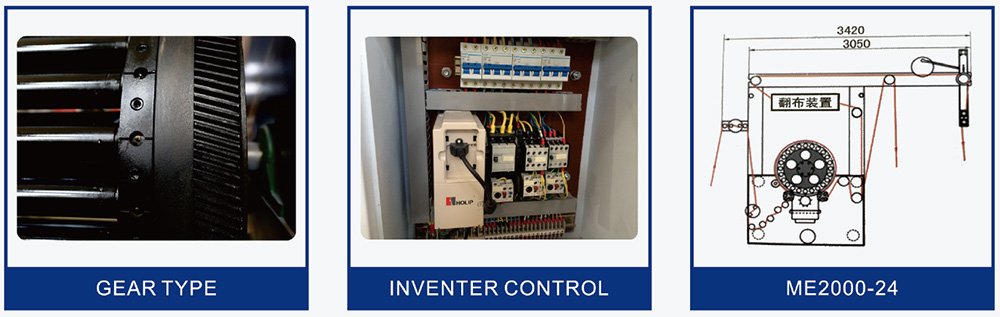

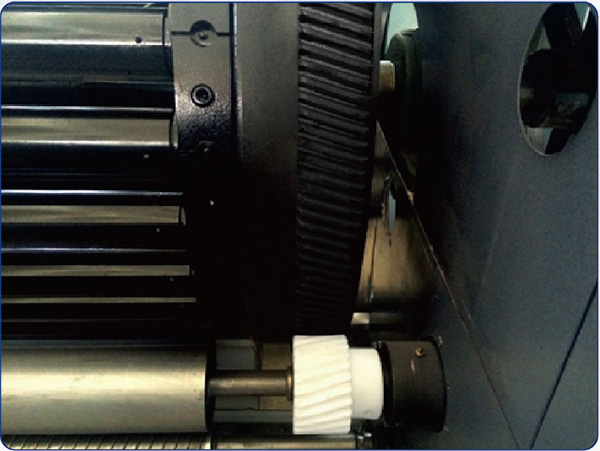

The needle rollers of this machine adopt gear transmission, with large transmission torque, smooth operation, and low
noise.
Motor gear transmission, equipped with a single frequency converter control motor. Simple structure, easy to maintain.
Multiple machines can be connected in series, and can be completely synchronized when connected.
| Installed Power | 14kw |
| Actual Power Consumption | 4kw |
| Adjustable Production Speed | 10-30 m/min |
| Number of Needle Rollers | 24 |
| Needle Roller Diameter | φ60mm |
| Cylinder Rotation Speed | 105 rpm |
| Cylinder Diameter | φ850mm |
| Working Width | 2000mm/2200mm/2500mm/2800mm |
| Transmission Mode | Gear Drive |
| Overall Dimensions - 2000mm | 4000×4000×3050mm |
| Overall Dimensions - 2200mm | 4200×4000×3050mm |
| Overall Dimensions - 2500mm | 4500×4000×3050mm |
