Wanfang technology has been widely used in China's textile printing and dyeing industries, making significant contributions to automation control
This machine adopts a gear structure, fully variable frequency, touch screen control. It is equipped with 24 raising rollers. This product is suitable for surface raising of woven fabrics, knitted fabrics, including tubular and open-width knitted fabrics, camel hair, polar fleece, coarse woolen fabrics, woolen cloth, blankets, polar fleece, and other fabrics.
This machine adopts a human-machine interface, PLC control, and multiple frequency converters for simultaneous speed
adjustment.
Fabric speed, tension, cylinder, and raising roller speed can all be steplessly adjusted.

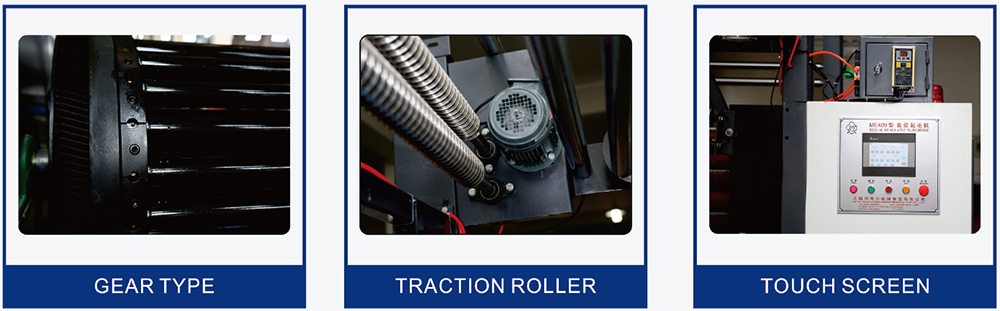

The needle rollers of this machine adopt gear transmission, with large transmission torque, smooth operation, and low
noise.
Motor gear transmission with variable frequency control. Simple structure, easy to maintain.
Features zero-point start, automatic fabric guiding, and fault alarm diagnosis functions.
Multiple machines can be connected in series, and can be completely synchronized when connected.
Can store 500 process parameters, simple and efficient operation.
| Installed Power | 19.2kw |
| Actual Power Consumption | 11.5kw |
| Adjustable Production Speed | 10-36 m/min |
| Number of Needle Rollers | 24 |
| Needle Roller Diameter | φ60mm |
| Cylinder Rotation Speed | 90-120 rpm |
| Cylinder Diameter | φ850mm |
| Transmission Mode | Gear Drive |
| Touch Screen Control | Yes |
| Working Width | 2000mm/2200mm/2500mm |
| Overall Dimensions - 2000mm | 4000×4000×3050mm |
| Overall Dimensions - 2200mm | 4200×4000×3050mm |
| Overall Dimensions - 2500mm | 4500×4000×3050mm |
