Wanfang technology has been widely used in China's textile printing and dyeing industries, making significant contributions to automation control
The flocking machine, also known as a high-voltage electrostatic generator, is a machine that uses the principle of electrostatic flocking to produce flocking products!
The principle of electrostatic flocking utilizes the physical characteristic that like charges repel and opposite charges attract. the flocking fibers is given a negative charge, and the object to be flocked is placed at zero potential or grounded conditions. the flocking fibers is attracted by the object at a different potential, accelerating vertically to the surface of the object to be flocked. Since the object is coated with adhesive, the flocking fibers is vertically adhered to the object. Electrostatic flocking is a new production process that utilizes the natural characteristics of electric charges.

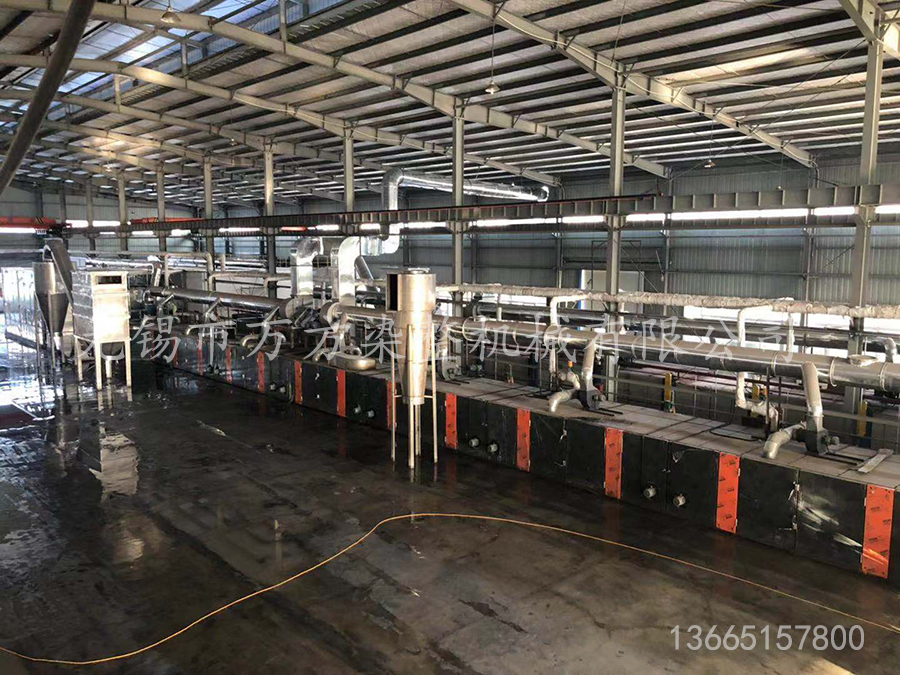

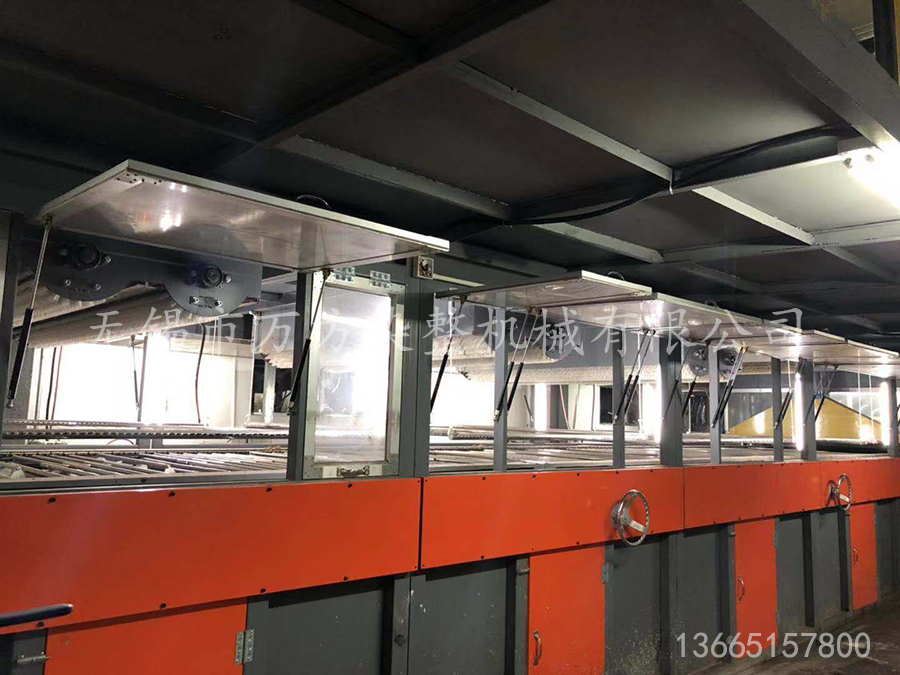

The flocking machine produced by our company is an assembly line flocking system: This flocking production line can achieve fully automatic completion from gluing, flocking, drying, and floating绒毛 removal in one go, such as: flocking on fabrics, leather, paper, non-woven fabrics, PVC, blister sheets, sponges, various crafts, toys, automotive plastic parts, storage boxes, automotive sealing strips, decorative strips, blister boxes, cardboard, calendars, couplets, New Year paintings, and packaging gift boxes.
| Machine Width |
Type 180---Printing width 1600mm Type 200---Printing width 1800mm Type 220---Printing width 2000mm Type 240---Printing width 2200mm Type 260---Printing width 2400mm Type 280---Printing width 2600mm Type 300---Printing width 2800mm Type 320---Printing width 3000mm |
| Machine Speed | 0-30m/min |
| Heating Source | ①Steam ②Thermal oil ③Electric heating ④Natural gas |
| Drying Chamber Working Temperature | 100-200℃ |
| Rotary Screen Drive Mode | AC motor with frequency conversion drive |
| Compressed Air | 0.6~0.8Mpa |
| Total Installed Power | 110KW |
