Wanfang technology has been widely used in China's textile printing and dyeing industries, making significant contributions to automation control

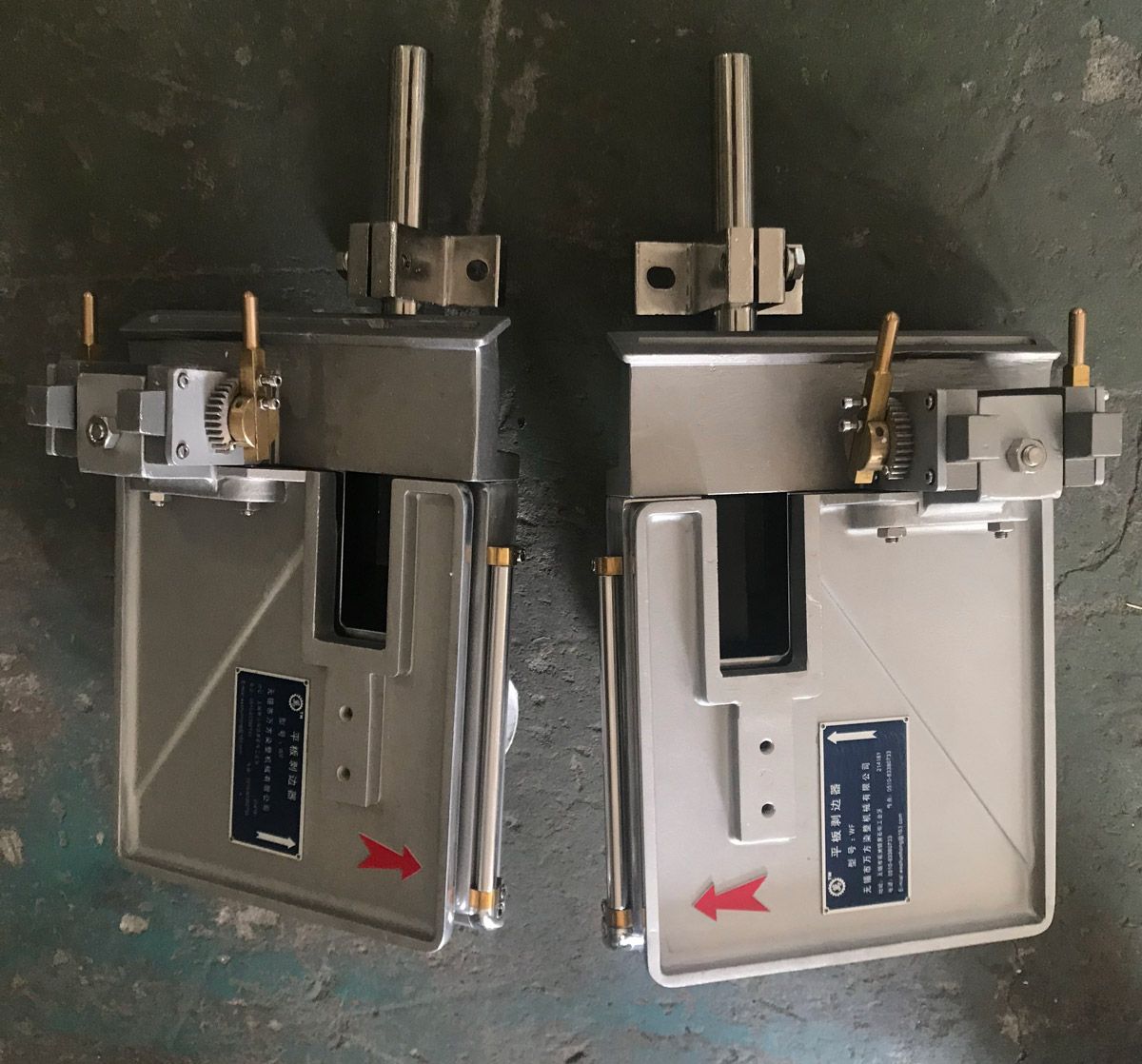

The double-sided edge blower is a high-efficiency air-flow edge spreading device developed based on the single-sided edge blower. Unlike the single-sided model, the double-sided edge blower adopts a bidirectional blowing design, which can blow air simultaneously from both the upper and lower sides of the fabric, making the edge separation and flattening effect more uniform and thorough.
·Bidirectional blowing for more uniform effect: The double-sided edge blower blows air simultaneously from the upper and lower sides, allowing the airflow to act on the curled fabric edges from two directions. The flattening effect is more comprehensive and uniform, especially suitable for fabrics with severe curling or curling issues on both sides.
·Wider applicable fabric range: The bidirectional blowing structure enables it to meet the edge separation needs of different types of fiber materials, including various woven and knitted fabrics such as cotton, wool, linen, and chemical fibers. For fabrics with higher weight or tighter structure, the double-sided blowing method can provide more sufficient flattening effect.
·Damage-free processing: Like the single-sided model, the double-sided edge blower also adopts a non-contact air-flow blowing method. The fabric is in a low-tension or even tension-free state, avoiding mechanical damage and ensuring a smooth and mark-free fabric surface.
·Adjustable gap: By adjusting the spacing between the upper flap and the lower panel, it can flexibly adapt to different fabric varieties with different thicknesses and weights.
·Application scenarios: Double-sided edge blowing devices are mainly used on equipment at the fabric entry point of stenter machines, tenter frames, printing machines, etc., to pull open and flatten loose and curled fabric edges, which can significantly improve fabric quality. Especially suitable for knitted fabrics and fabric varieties with prominent curling issues.
| Applicable Fabric Weight | ≤ 400 g/m² |
| Applicable Fabric Speed | 5～100 m/min |
| Overall Dimensions (L×W×H) | 460 × 245 × 160 mm (without air pump) |
| Applicable Fabric Types | Woven fabrics, knitted fabrics |
| Applicable Fabric State | Dry state, wet state |
