Wanfang technology has been widely used in China's textile printing and dyeing industries, making significant contributions to automation control
This product is suitable for polishing treatment of various natural and chemical fiber woven fabrics, knitted fabrics, and tufted fabrics. Including polyester blankets, artificial fur, woolen fabrics, warp knitted fabrics, cashmere coats, super soft short plush, non-collapsing velvet, velvet, and silk velvet polishing. After polishing treatment, the fabric surface pile is smooth, fluffy, and has obvious luster.

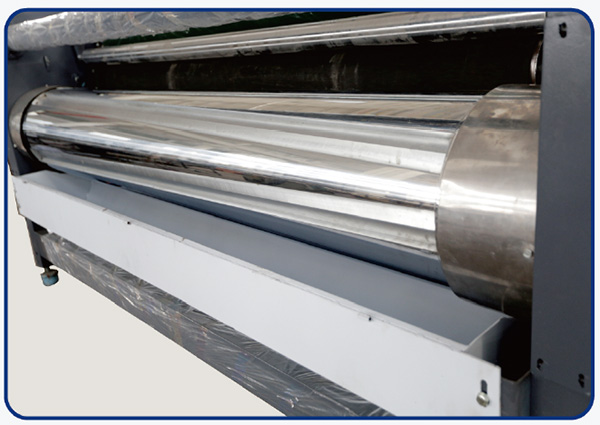

This machine uses thickened polishing rollers with 6 W-shaped grooves, greatly increasing the contact area and time
between the polishing roller and the pile.
The cloth dragging belt combines vertical and horizontal arrangements, increasing cooling space and providing a more
reasonable structure.

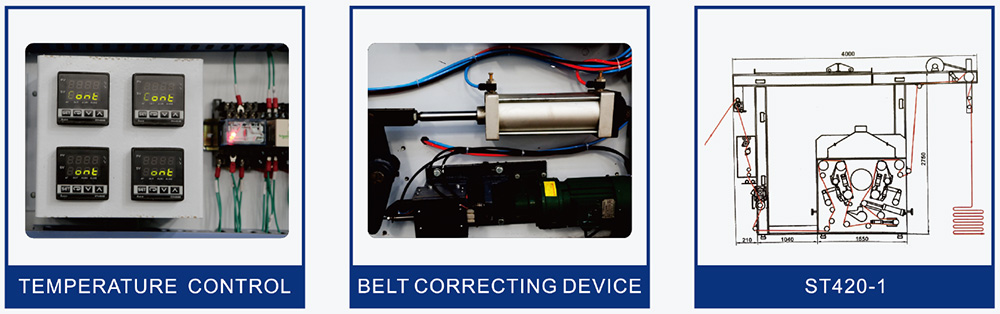

Cloth dragging belt pressure, tension, polishing roller speed, and temperature are all controlled by variable
frequency, with simple operation and easy control.
This machine is equipped with an intelligent temperature controller, providing higher temperature control accuracy,
precise to 2℃.
| Installed Power | 75kw |
| Electric Heating Power | 54kw |
| Production Speed Adjustment | 5-30 m/min |
| Polishing Roller Speed | 900rpm |
| Polishing Roller Temperature | 100-200℃ |
| Polishing Roller Diameter | φ420mm |
| Machine Weight | 4500kg |
| Polishing Roller Groove | 6-slot W-type |
| Overall Dimensions - 2200mm | 4000×4730×3170mm |
| Overall Dimensions - 2500mm | 4000×5030×3170mm |
